MEG-03 - OSEPP MEGA 2560 R3 PLUS COMPATIBLE WITH ARDUINO
Product details
| Management number | 238123213 | Release Date | 2026/07/11 | List Price | US$22.00 | Model Number | 238123213 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

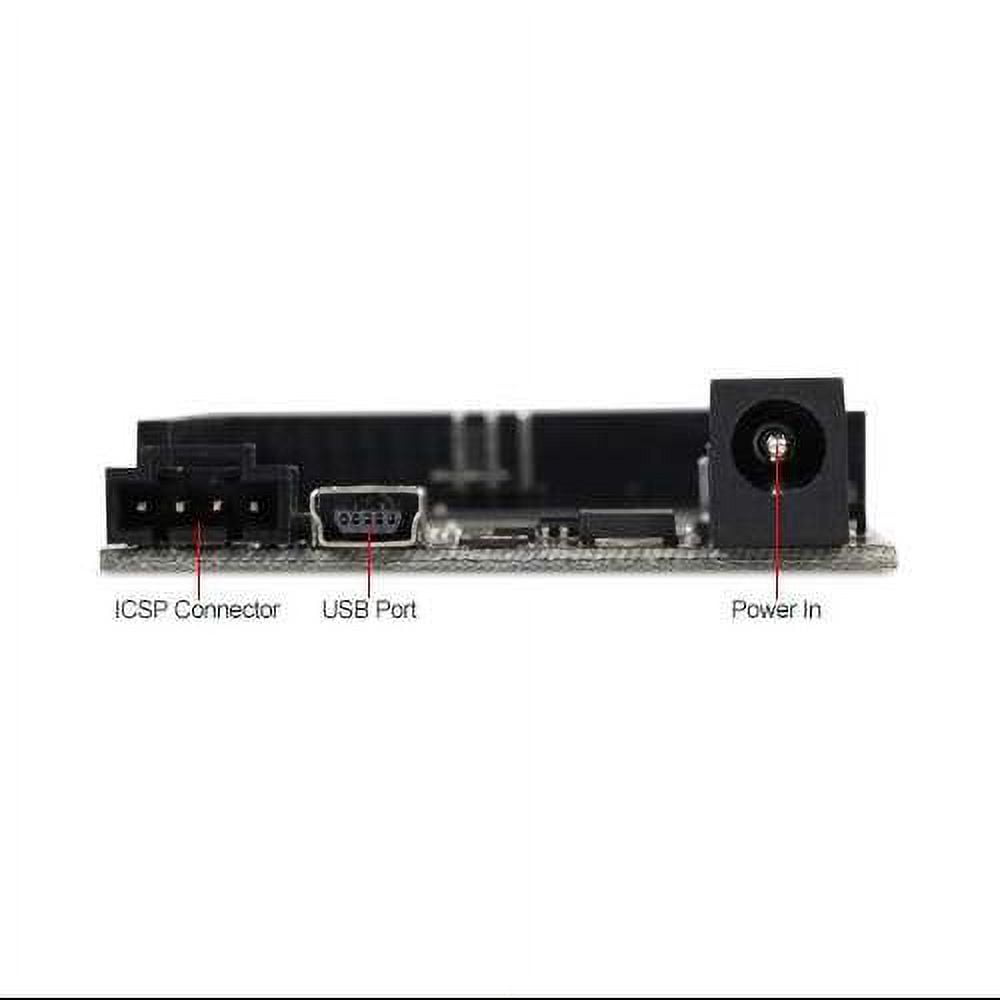

<p>OSEPP? Mega 2560 R3 Plus</p><p>The OSEPP? Mega 2560 R3 Plus is the bigger brother to the OSEPP? Uno board with more flash memory more SRAM more EEPROM and more pins. This board is perfect for projects that require a lot of inputs/outputs or that require more complex programs that cannot fit into the smaller memory of the ATmega328P.<br> <br>New in R3:<br> Added SCL/SDA pins next to AREF header<br> Added IOREF pin to power header<br> <br>?Plus? Features:</p> <p>Replaced USBB connector with more popular miniUSB connector<br> Added Molex connector for easy connect to OSEPP? sensors and other I2C devices.</p><p>Specifications:<br>Microcontroller ATmega2560<br>Clock Speed 16 MHz<br>Flash Memory 256 KB<br>SRAM 8 KB<br>EEPROM 4 KB<br>Operating Voltage 5 V<br>Input Voltage 612 V<br>Digital I/O Pin Count 54 (including 14 for PWM output)<br>Analog Input Pin Count 16<br>Other Connections MiniUSB<br>ICSP for ATmega2560<br>DC power connector<br>4pin latchable Molex connector<br>Dimensions 4.23 x 2.13 x 0.61 inches (107.5 x 54.0 x 15.5 mm)<br>Power Source USB or external DC power supply<br> <br>Highlights:</p> <p>8bit AVR RISCbased microcontroller running at 16 MHz<br> 8x more flash and 4x more SRAM and EEPROM than the Uno<br> Connects to a computer via a standard USB cable<br> Flexible power source (USB or DC power)<br> ICSP header for programming microcontroller<br> Compatible with existing Arduino software libraries<br> Compatible with the Ethernet and Motor Controller Shields<br> <br>Features:</p><p>The ATmega2560 comes with the Arduino bootloader preloaded. There is an ICSP (InCircuit Serial Programming) header for the ATmega2560 to optionally replace the bootloader.</p><p>As an added precaution the board comes with a resettable polyfuse on the USB connection path. To prevent damage to the computer?s USB port the fuse will trip when the current to the port exceeds 500 mA.</p><p>The input and/or output pins are brought out to headers which enable a convenient way to prototype projects without the need of soldering or desoldering.</p>
- New
- New
- New
| Compatible models | Uno |
|---|---|
| Compatibility | Arduino |
| Model name | Mega 2560 R3 Plus |
| Brand | OSEPP ELECTRONICS INC |
| Height | 0.61" |
| Has written warranty | No |
| Retail packaging | Single Piece |
