Division Indexer Vertical and Horizontal Indexing Plate,Indexing Head Set 5"，6"，Indexing Head Milling for Milling Machines, Grinding Machines and 3-jaw Chucks Indexing Head(Size:5in/125mm)

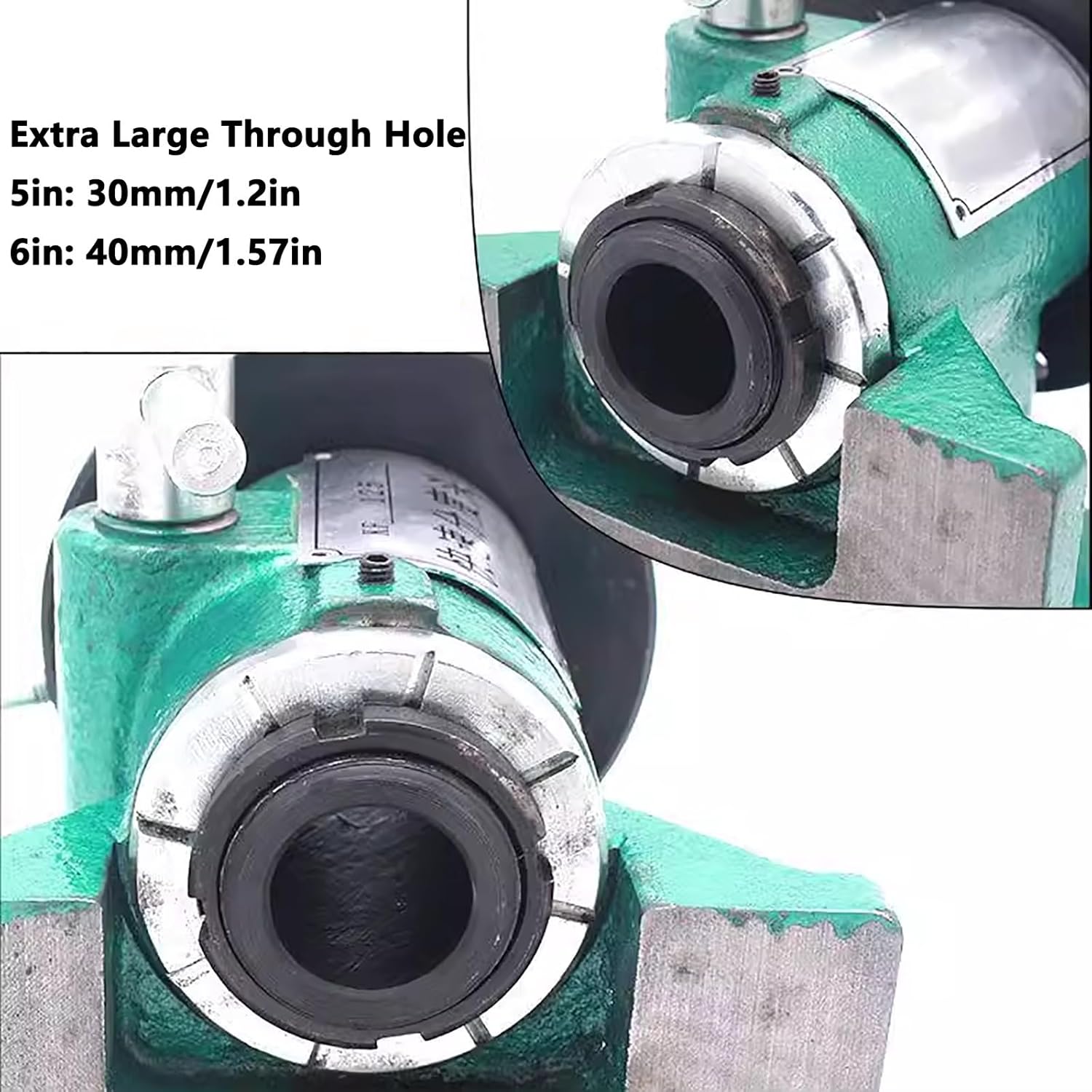

The indexing head is a machine tool accessory installed on the milling machine for dividing the workpiece into any equal parts. The use of indexing scale ring and vernier, positioning pins and indexing disk and exchange gears, will be mounted on the top of the chuck or between the workpiece is divided into any angle, can be divided into any part of the circumference of the auxiliary machine tool using a variety of different shapes of cutting tools for a variety of grooves, spur gears, helical spur gears, screw cams and other machining work. Can be used both horizontally and vertically, making it very convenient.Equipped with a variety of accessories to make machining easierMade of cast iron to ensure long-lasting useSuitable for metal mold machiningProduct SpecificationsCenter height: 130mm/5.1in, 140mm/5.5inChuck Diameter: 5in/125mm, 6in/150mmChuck type: 3-jaw chuckClamping range: 3-125mm/0.1-4.9in, 3-145mm/0.1-5.7inTransmission output shaft diameter: 30mm/1.2Weight: 35.2 lbs/16kgPackage Contents1 x Indexing head + all accessoriesNote: The size is measured manually, there will be errors, please refer to the actual size.Due to the different screen display, there is a reasonable color difference, please prevail in kind.Please feel free to contact us if you don't understand or have any questions about this product. We will reply within 24 hours, we are committed to customer satisfaction.

• INCLUDED INDICATOR PLATES: The universal indexing head comes with a direct index plate, which is located on the headstock, and two interchangeable index plates, which set the exact distance between cuts.
• LONG LASTING USE: The dividing head is forged from FC30 cast iron and is resistant to wear and tear, making it an excellent choice for long term use. Its precision parts fit perfectly to mathematically divide the material to be cut.
• WIDE RANGE: The indexer can be used on the tables of milling machines and other machine tools including drilling, grinding and boring machines. It is designed for precise positioning, rotation, indexing and clamping of wood and metal workpieces for curved surfaces, long holes and precision drilling. It is widely used in automotive, mold making and general machinery and plays an important role in machining.
• HORIZONTAL OR VERTICAL: the headstock of the milling machine's indexing head can be used in horizontal or vertical orientation, so you can work with different sizes of material by changing its angle. A convenient and efficient milling experience.
• COMPLETE ACCESSORIES: the package also includes a tailstock, which will provide strong support for the long metal rods you are going to handle, making the working condition more stable.
