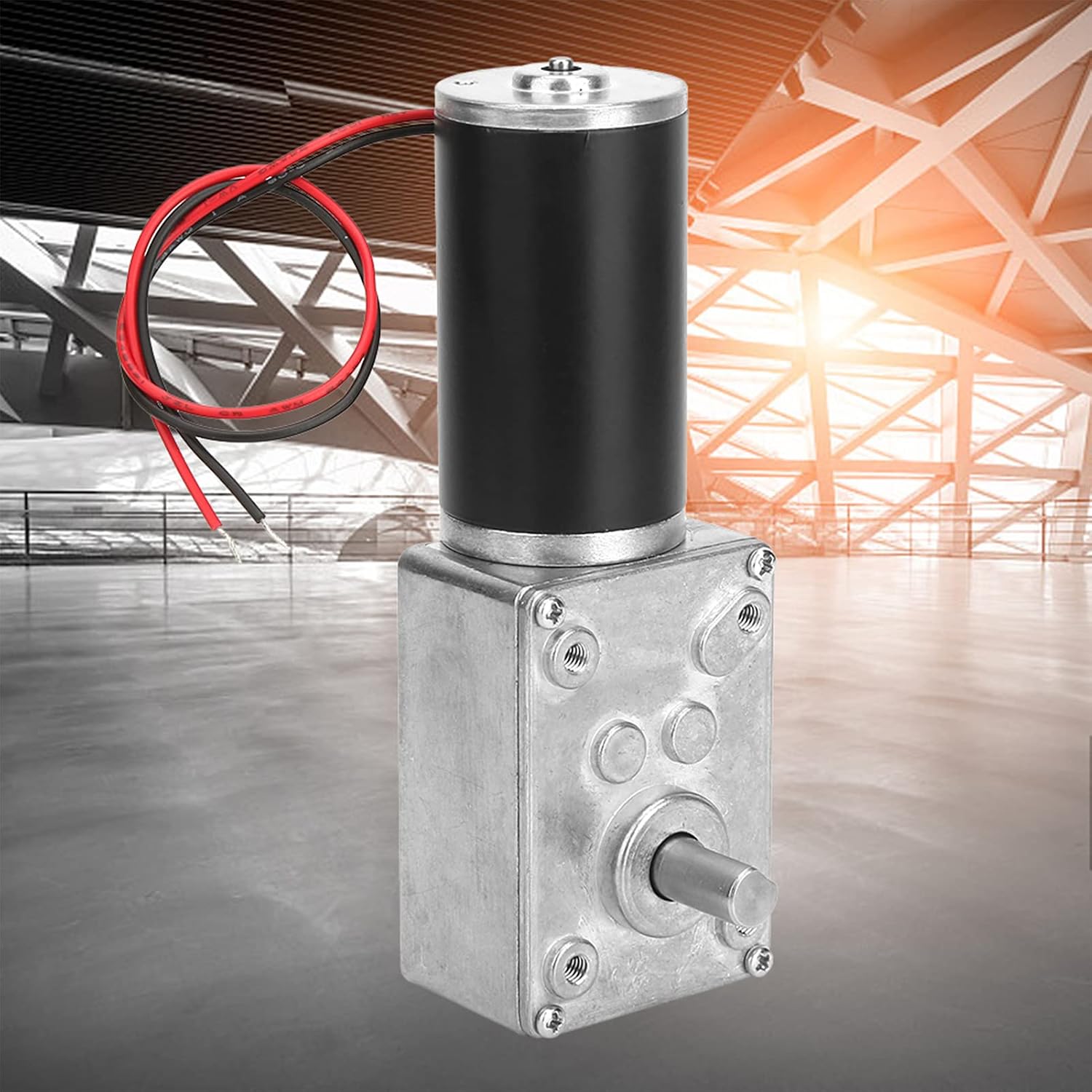

DC Worm Gear Motor, High Torque Speed Reduction Motor 24V | Dc Wormss Gear Motor Electric Motor 8mm Shaft for DIY Robot Door Lock Curtain Machine (30rpm)

Features: Specification:Voltage: 24V Optional Style: 500RPM, 250RPM, 150RPM, 100RPM, 50RPM, 30RPM, 20RPM, 10RPMVoltage V 24 24 24 24 24 24 24 24 Rated speed RPM 500 250 150 100 50 30 20 10 Rated torsion Kg.cm 3.4 6.2 10 20 40 60 70 70 Rated current A 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 Maximum torsion Kg.cm 10 18 30 60 70 70 70 70 Stop current A 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 Package List: 1 * Wormss Gear Motor Instructions for Use: 1. The gear can withstand up to 70KG, it is forbidden to block, and it is easy to burn the motor after blocking for a long time. 2. The motor has a self-locking function of power-off, and the positive and negative poles of the switching motor are controlled to reverse.

• Material performance: 24 volt dc wormss gear motor 24v high torque reduction gearbox made of premium material, durable and long service life. Worm gear motor delivers steady output under continuous running conditions. Gearbox motor maintains stable working state for long‑time equipment operation
• Compact structure: Single shaft wormss gear motor dc 24v, 31mm premium copper tube motor, small volume and big torsion. Small dc gear motor saves installation space for compact mechanical assemblies. High torque dc motor outputs strong power within limited overall dimension
• Shaft design: Dc 24v 8mm dia shaft magnetic gearbox electric motor 31mm, ball bearing design enhances the wearresistance of shaft. Right angle geared motor adapts to special angle installation requirements of machinery. Reducer motor keeps shaft rotation smooth during equipment operation
• Gear construction: High torsion speed reduce electric gearbox motor all metal gears are impactresistant, long life and low noise. Dc gear motor generates little sound in normal working cycles. Metal reduction gears cooperate closely to realize stable power transmission
• Reversible function: Reversible wormss gear motor, generally used in curtain machines, advertising equipment, window openers and smart devices. Forward reverse gearbox supports two‑way rotation to fit different device logic. Worm gear reducer meets driving demands for multiple kinds of automation apparatus
